Tungsten Carbide API Valve Seat and Ball V11-175 for Oil Pump

Name: Tungsten Carbide API Valve Seat and Ball V11175 for Oil Pump
Brand: Kedel
Price: 0.60 USD

Quality Tungsten Carbide API Valve Seat and Ball V11-175 for Oil Pump for sale

Brand Name : Kedel

Model Number : V11-175, VII225, VII250

Certification : ISO9001:2015,SGS,

Place of Origin : Sichuan, China

MOQ : 20 Piece/Pieces

Price : $0.60 - $18.00 / Piece

Payment Terms : T/T,L/C,Western Union,MoneyGram

Supply Ability : 2000 pcs per months

Packaging Details : box +carton

Product name : Tungsten carbide API Valve pair seat and ball for sucker rod pumb

Size : API V11, VII, Customer's Request

Application : Oil pump, oil industry

Surface : Blanks or polished grinding

Service : OEM

Contact Now

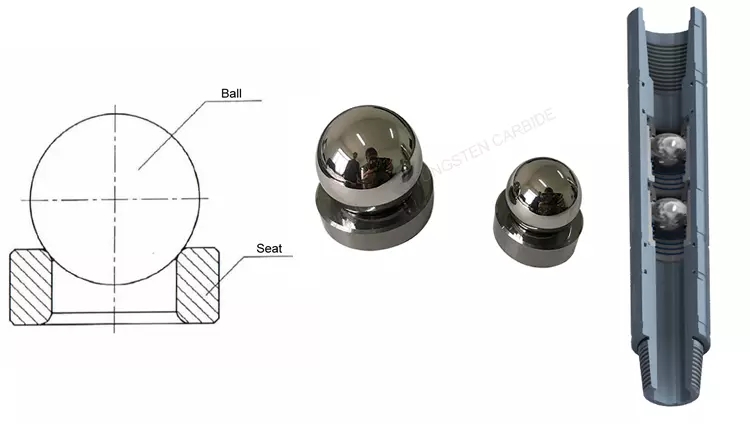

Tungsten carbide API Valve pair seat and ball for sucker rod pump part

Product Description

Features of Tungsten carbide API Valve pair seat and ball for sucker rod pump part:

For sealing of valves of oil pumps in petroleum industry's sand containing wells, viscous oil wells, sea oil wells, high pressure sulfur resistant oil wells, compatible Cemented Carbide valve seats, etc.
Various grades for cemented carbide balls/pellets can be supplied according to customer's drawings.
The surface finish, tolerance class and tolerances of dimensions have respectively reached the standards of the machine industry.

Application

Tungsten carbide ball was widely used in precision tools drawing and punching, high precision bearings, high precision measuring instrument and appratus, water pump and brake pump, and various machinery sealing accessories part in high-tech industry and oil industry.

Grade No.

Grade	WC%	CO%	Hardness (HRA)	Density (G/M³)	T.R.S (Mpa)	Application
YG6	94%	6%	91	14.6-15.0	1700	Widely used in all kinds of hardware industry, valve, bearing, die casting, punching, grinding measurement.
YG6X	94%	6%	92	14.6-15.0	1450	Widely used in all kinds of hardware industry, valve, bearing, die casting, punching, grinding measurement.
YG8	92%	8%	89	14.4-14.8	1800	Widely used in valves, bearing, die casting, punching, grinding measurement, hardness tester, petroleum, chemical industry, aeronautics and astronautics.
YG11	89%	11%	88	14.25-14.4	2350	Widely used in the oil industry, for API Valve pair seat and ball for sucker rod pump part
YG13	87%	13%	87	14.03-14.25	2400	Widely used in the oil industry, for API Valve pair seat and ball for sucker rod pump part

VII type Ball &Seats size

TYPE	BALL(MM)	SEAT(MM)
TYPE	BALL(MM)	OD	ID	Height
VII-106	16.5	20.60	11.89	13.1
VII-125	19.7	23.85	14.61	13.1
VII-150	24.4	30.20	17.83	13.1
VII-175	29.0	35.80	21.08	13.1
VII-225	35.4	44.20	26.57	13.1
VII-230	35.4	38.60		13.1
VII-250	43.3	51.60	32.13	13.1
VII-375	57.65	62.30	44.50	19.45

Products photos

Tungsten Carbide API Valve Seat and Ball V11-175 for Oil Pump

Usage feild

Production Facility

Quality Control

Product Exhibition

Exhibition Showcase

Frequently Asked Questions

Are you trading company or manufacturer?

We are manufacturer.

Do you make customized products?

Yes, we often make customized products.

Do you provide free samples?

We can provide free samples, but do not pay freight cost.

How long is your delivery time?

Generally 1-5 days if we have stock, 30 days if the product is customized.
